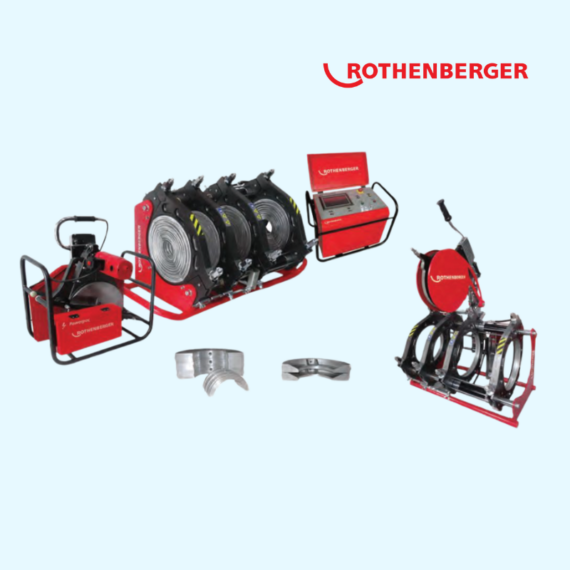

Rothenberger Intelligent CNC Automatic Butt Fusion Welding Machine

The Rothenberger Intelligent CNC Automatic Butt Fusion Welding Machine represents state-of-the-art technology in pipeline welding. Designed with precision and efficiency, it caters to professionals seeking high-quality welds for various piping materials. This robust machine is ideal for a wide range of applications, from industrial installations to municipal infrastructure projects.


Key Features

• Pre-installed Welding Standards: Complies with CTSG, ISO, DVS, GIS, and other recognized global standards, ensuring uniform and reliable welds for critical operations.
• Data Management Capabilities: Real-time data printing and recording features with a USB port for easy transfer and analysis of welding data.
• Precision Alignment: Standard use of single inserts improves pipeline alignment accuracy, incorporating BDS/GPS positioning for enhanced precision.
• Smart Connectivity: Compatible with the SMART GAS CLOUD WELDING system for seamless integration and remote operation.
• Customization Options: Available with standard single clamps or optional narrow clamps for specialized tasks, including a jumping heating plate design for flexibility and operational efficiency.



Benefits

• Enhanced Efficiency: Automated CNC control minimizes manual input, ensuring consistency and reducing errors.
• Versatility: Applicable across a broad range of pipe sizes, materials, and working conditions. Suited for materials like PE100, PP, PVDF, UPVC, and PVC.
• Ease of Use: User-friendly design with intuitive controls, lightweight, and portable, making it suitable for on-site and off-site projects.
• Cost-Effectiveness: Reduces manpower requirements and welding time while minimizing rework due to its high accuracy.
• Compliance with Standards: Guarantees reliable results aligned with international safety and quality regulations.



Technical Specifications

Model	Pipe Size Range (mm)	Heating Plate Temp.	Pressure Range	Power Requirements
RC160C	40–160	270°C	0.4–6 MPa	2.45 kW
R250C	63–250	270°C	0.4–6 MPa	3.85 kW
R315C	90–315	270°C	0.4–6 MPa	4.85 kW
R355C	90–355	270°C	0.4–6 MPa	4.85 kW



Applications

The Rothenberger Butt Fusion Welding Machine is ideal for:

• Water and gas pipeline construction.
• Industrial piping systems.
• Wastewater management.
• Municipal infrastructure projects.

Its compatibility with custom fittings such as 30°/45°/90° bends, tees, cross tees, and puddle flanges enhances its adaptability across diverse applications.


Additional Information

• Fabrication: Compatible with SDR9 to SDR33 standards. Suited for materials like PE100, PP, PVDF, UPVC, PVC, and more.
• Certification: Comes with DVS ZERT test reports for added assurance of quality and safety.


This versatile and technologically advanced welding machine from Rothenberger ensures unmatched precision and efficiency in pipeline welding. Whether used in industrial settings or municipal projects, its robust design and innovative features make it a valuable investment for professionals.
